Carver Trumatic SB1800 Caravan Heater Fitting Instructions

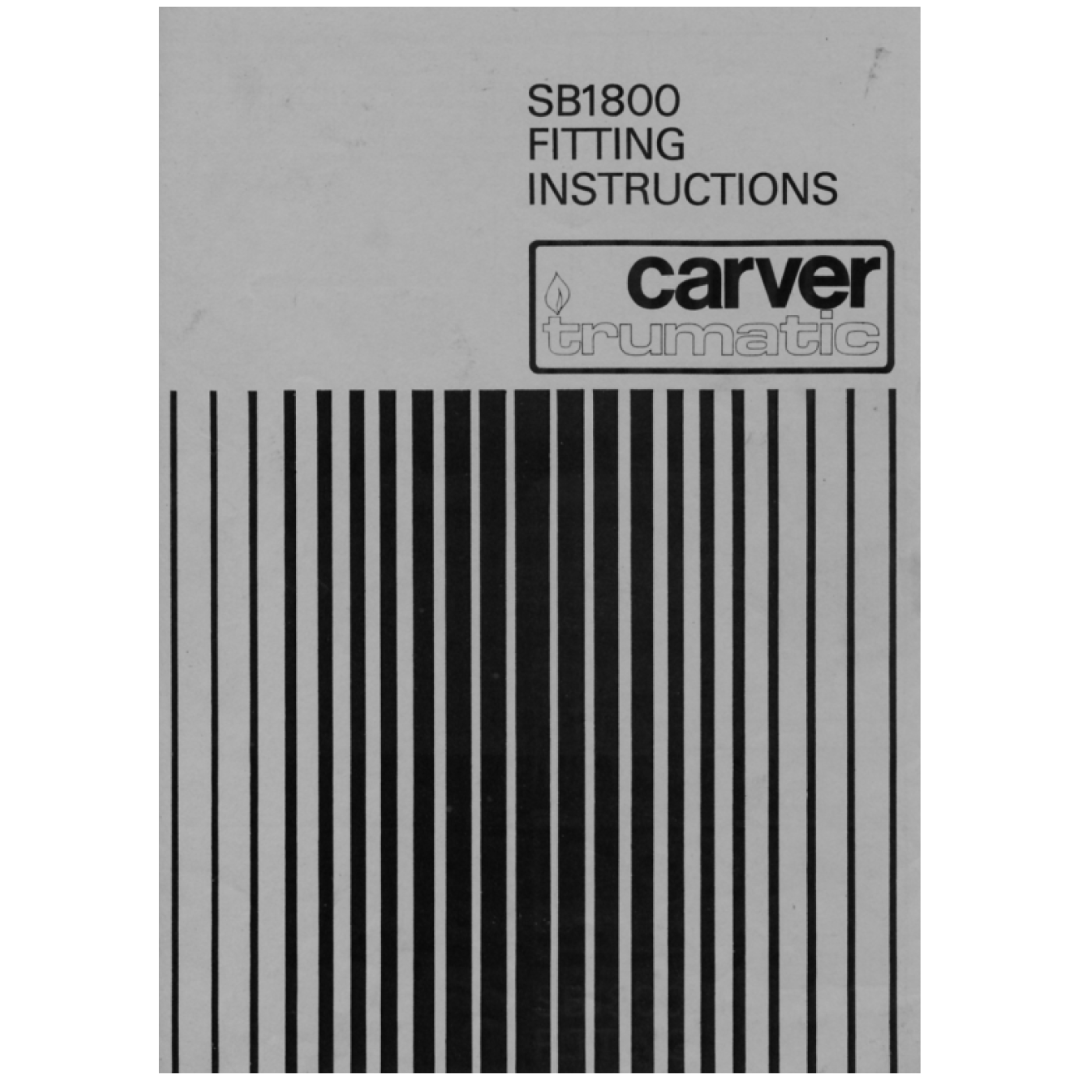

Download the Carver Trumatic SB1800 Fitting Instructions, a 6-page installation guide covering the fitting of the Carver SB1800 gas heater in a caravan.

This is specifically a fitting and installation manual, rather than a general user or operating handbook. It provides illustrated, step-by-step guidance for positioning and installing the SB1800 heater, including standard and recessed installations, changing the heater handing, fitting the underfloor components and making the gas connection.

The manual identifies the main heater components as the installation box, ignition button, gas control knob, top grille, casing, clamping plate, air intake arm, exhaust cowl and chromed hexagon nut. Carver SB1800 Installation

What's covered:

• Identification of the Carver SB1800 heater components
• Installation preparation and required tools
• Choosing the appropriate installation box
• Planning the heater position around the caravan's underfloor layout
• Right-hand and left-hand heater configurations
• Instructions for changing the heater handing
• Positioning the heater adjacent to a wall
• Recessed installation into a wardrobe or division wall
• Cutting the required installation opening
• Ventilation requirements for recessed installations
• Marking and cutting the floor opening
• Fitting and securing the installation box
• Installing the heater into the prepared opening
• Fitting the flue cowl and air intake
• Connecting the heater to the caravan gas supply
• Leak testing and initial firing guidance
• Guidance for dealing with underfloor obstructions
• Floor template dimensions and installation positioning information

The illustrated instructions explain that the heater's standard configuration is right-handed, with the air intake and exhaust positioned off-centre on the right-hand side, but the handing can be changed during installation. Carver SB1800 Installation

Model compatibility:

This fitting manual is specifically for the Carver Trumatic SB1800 heater. The document also refers to installation box types UB and GT 440 when discussing installation options. Carver SB1800 Installation

This Carver SB1800 installation manual is useful as a replacement copy if the original fitting instructions have been lost or if documentation is missing from an older caravan fitted with a Carver Trumatic heater.

Please note: This listing is for a downloadable PDF fitting manual only. It does not include the Carver SB1800 heater, installation components or any physical parts.
