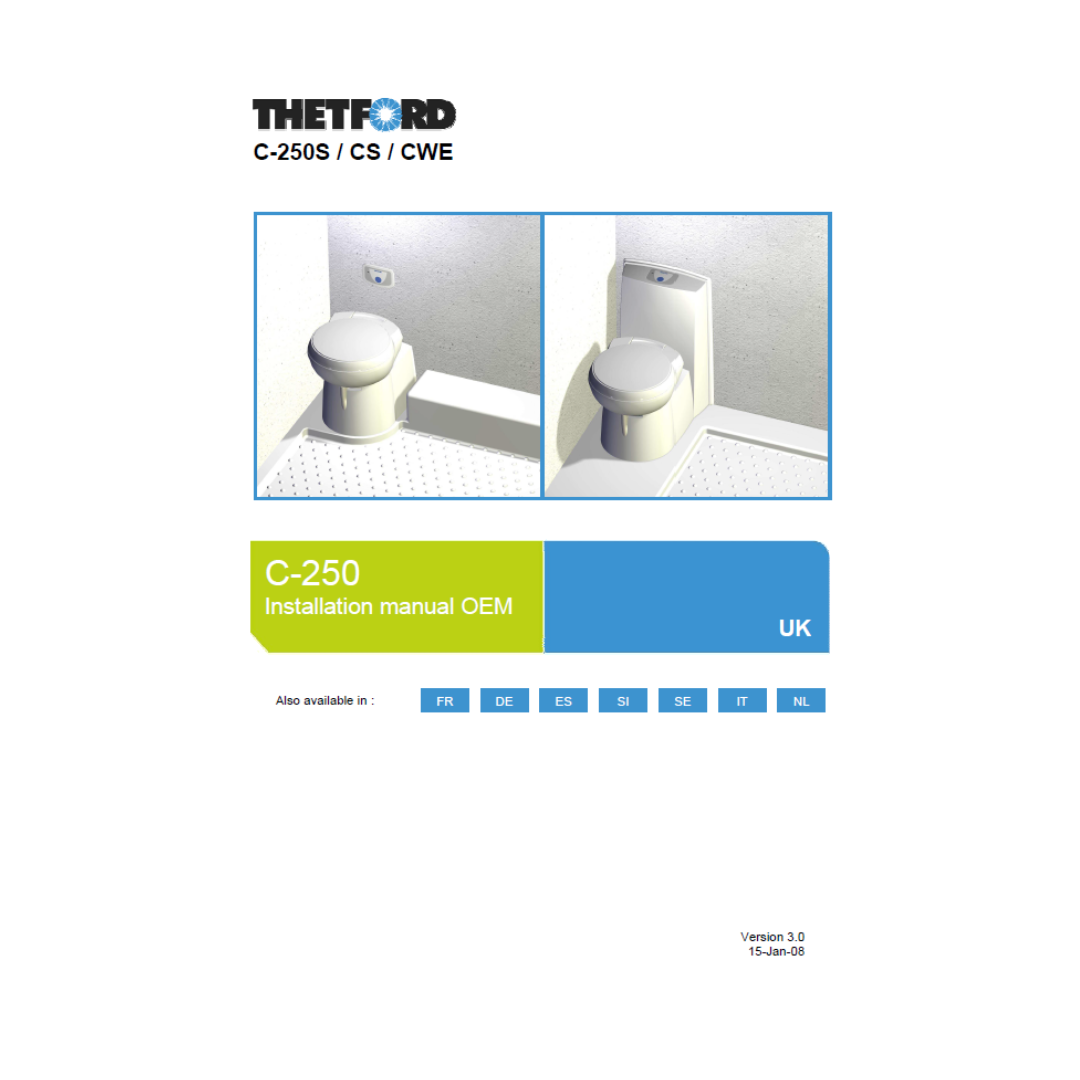

Thetford C-250S / C-250CS / C-250CWE Cassette Toilet Installation Manual

Download the Thetford C-250 Cassette Toilet Installation Manual, covering the installation requirements and interfaces for the Thetford C-250S, C-250CS and C-250CWE cassette toilet systems. The document is specifically identified by Thetford as the C-250 Installation Manual OEM and covers all three C-250 variants.

This is a 19-page PDF installation manual, intended for installation and technical reference rather than as a general operating/user manual. It is particularly useful when replacing lost documentation, working on a caravan or motorhome fitted with a Thetford C-250 toilet, or requiring the original installation information for the C-250 range.

What's covered:

• Generic installation interfaces for all C-250 versions
• Specific installation information for the C-250S
• Specific installation information for the C-250CS
• Specific installation information for the C-250CWE
• Toilet cut-outs, floor and wall mounting requirements
• Power supply, wiring and electrical connections
• Water hose and water pump connections
• Shower tray interfaces
• Plenum installation
• Waste pump-out system installation and FAQs
• Passive outside vent installation
• Automatic ventilator installation and FAQs
• Packaging information and returnable packaging instructions
• Standards applicable to the C-250
• Reference information for associated 2D drawings and 3D files

The manual provides detailed installation information including outside-wall and floor interfaces, mounting requirements, electrical supply connections and operating temperature requirements. It also identifies the relevant Thetford technical drawings used for different C-250 configurations.

Model compatibility:

This installation manual covers:

• Thetford C-250S
• Thetford C-250CS
• Thetford C-250CWE

The manual contains dedicated installation sections for each of these variants, including their applicable cut-out, dimensional, floor connection and other installation drawings.

It also covers optional C-250 installation equipment including the plenum, waste pump-out system, passive outside vent and automatic ventilator, with the manual identifying which options apply to each C-250 version.

Ideal as a replacement Thetford C-250 installation manual PDF for caravan and motorhome owners, technicians or installers looking for the original Thetford C250 installation instructions and technical information.

Please note: This listing is for a downloadable PDF manual, not a physical Thetford toilet or replacement part.
