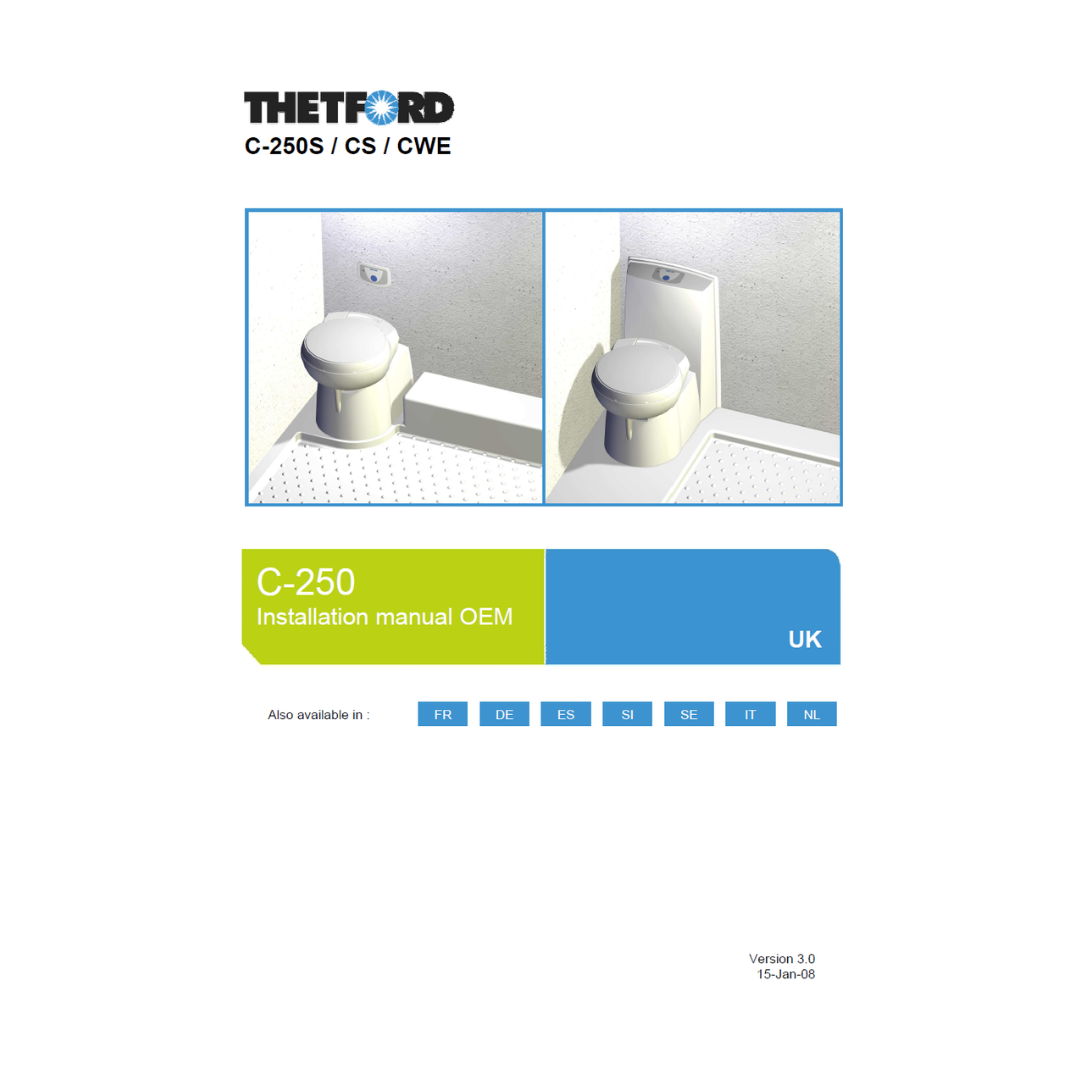

Thetford C250 S / CS / CWE Cassette Toilet OEM Installation Manual

Download the Thetford C250 Series Cassette Toilet OEM Installation Manual, covering installation requirements and interfaces for the C-250S, C-250CS and C-250CWE models. This is specifically an OEM installation manual, rather than a user or operating handbook.

This 19-page PDF manual provides detailed technical installation information for fitting Thetford C250 Series swivel bowl cassette toilets, including generic and model-specific installation interfaces, electrical and water connections, mounting requirements and optional systems.

It is particularly useful when installing, replacing or investigating the original installation of a Thetford C250 toilet in a caravan or motorhome, or when the original installation documentation is no longer available.

What's covered:

• Generic installation interfaces for all C-250 versions
• Specific installation requirements for the C-250S
• Specific installation requirements for the C-250CS
• Specific installation requirements for the C-250CWE
• Outside wall and access-door cut-outs
• Floor and wall mounting requirements
• Power supply and electrical connections
• Water hose and pump connections
• Shower tray interfaces
• Optional plenum installation
• Waste pump-out system installation and FAQ
• Passive outside vent installation
• Automatic ventilator installation and FAQ
• Packaging information and returnable packaging instructions
• C-250 standards and certification information
• References to associated 2D drawings, 3D files and installation documentation

The manual includes model-specific technical information. For example, the C-250S section covers applicable cut-out drawings, main dimensions, floor connection, shower tray interface, rotated bowl and water pump connection, together with instructions for securing the toilet to the floor and inside wall.

It also covers optional C250 installation configurations including a plenum, waste pump-out system, passive outside vent and automatic ventilator, with the manual identifying which options apply to each C250 variant.

Model compatibility:

This OEM installation manual covers the following Thetford C250 Series cassette toilet models:

• Thetford C-250S
• Thetford C-250CS
• Thetford C-250CWE

The manual states that its generic installation interfaces apply across the C-250 S / CS / CWE versions, with separate sections providing model-specific installation information.

Ideal as a replacement Thetford C250 installation manual for caravan and motorhome owners, technicians, converters or installers looking for the original fitting information for a C-250S, C-250CS or C-250CWE swivel bowl cassette toilet.

Please note: This listing is for a downloadable PDF installation manual, not a physical Thetford cassette toilet or replacement part.
