Thetford N80–N180 Caravan Fridge Spare Parts Manual – Deluxe & Premium LCD

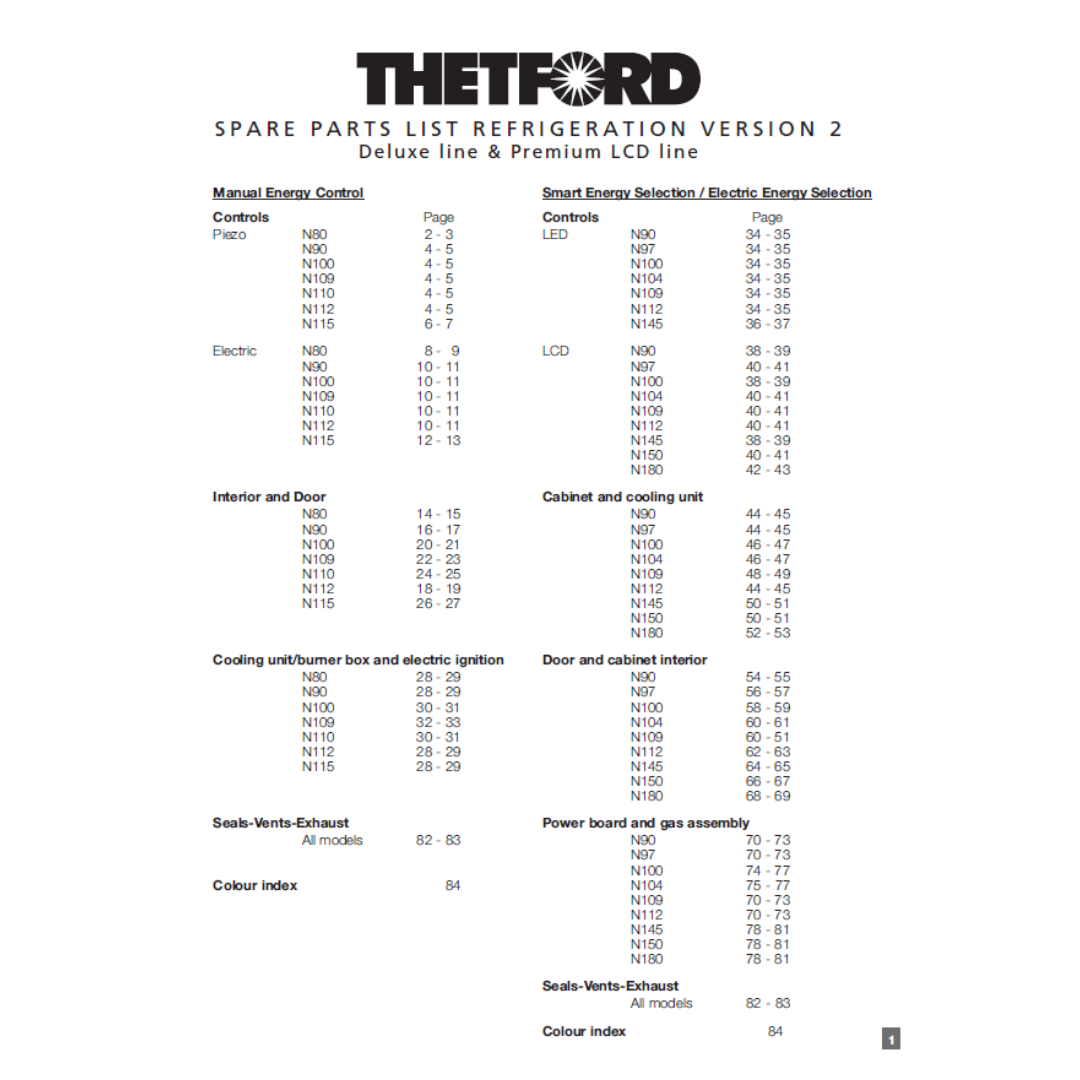

Download the Thetford N-Series Caravan Fridge Spare Parts Manual, covering Thetford Deluxe Line and Premium LCD Line refrigerators. This is an illustrated spare parts catalogue rather than an operating instruction manual, providing exploded diagrams, component identification and spare part numbers for a wide range of Thetford N-Series fridges commonly fitted to caravans and motorhomes.

This 88-page PDF spare parts manual is particularly useful for caravan and motorhome owners, repairers and technicians who need to identify components or find Thetford refrigerator part numbers before carrying out repairs or ordering replacement parts.

What's covered:

• Manual Energy Control refrigerator components
• Smart Energy Selection and Electric Energy Selection models
• Piezo and electric ignition controls
• LED and LCD control panels and display components
• Fridge interior and door components
• Shelves, door bins, vegetable bins, freezer doors and associated fittings
• Cabinet and cooling unit components
• Cooling units and burner boxes
• Piezo and electronic ignition components
• AC and DC heater components
• Power boards and gas assemblies
• Gas valves, burners and spark electrodes
• Seals, refrigerator vents and flue exhaust components
• Spare part numbers for individual components
• Exploded parts diagrams to help identify the required component
• Colour-code index for applicable spare parts

For example, the manual's cooling unit and burner sections identify individual components including the cooling unit, flue exhaust, flame diffuser, burner, thermocouple, spark electrode, electronic ignition and AC/DC heaters, together with applicable spare part numbers.

The later sections cover power board and gas assemblies for applicable models, including both Smart Energy Selection and Electric Energy Selection configurations.

Model compatibility:

The manual contains parts information for the following Thetford refrigerator models:

• Thetford N80
• Thetford N90
• Thetford N97
• Thetford N100
• Thetford N104
• Thetford N109
• Thetford N110
• Thetford N112
• Thetford N115
• Thetford N145
• Thetford N150
• Thetford N180

Not every section applies to every model; the manual identifies the relevant models for each controls, interior, cabinet, cooling, burner and power-board section.

The manual also includes a Seals, Vents and Exhaust section covering all models, with parts such as short and long flue exhausts, combustion flaps, vent caps, vent frames, vent covers and cabinet side seals.

Ideal if you are searching for a Thetford N80, N90, N97, N100, N104, N109, N110, N112, N115, N145, N150 or N180 fridge parts manual, exploded diagram, refrigerator spares catalogue or replacement parts PDF for a caravan or motorhome.

Please note: This listing is for a downloadable PDF spare parts manual/catalogue. It is not a physical refrigerator, replacement part or general user/operating manual.
