Thetford N90–N180 LCD Caravan Fridge Troubleshooting & Error Code Manual

Download the Thetford LCD Caravan Fridge Troubleshooting & Error Code Manual, a 21-page technical troubleshooting guide covering Thetford Premium LCD refrigerators and related refrigerator systems. The guide provides diagnostic flowcharts for fridge error codes, electrical and gas faults, and cooling performance problems.

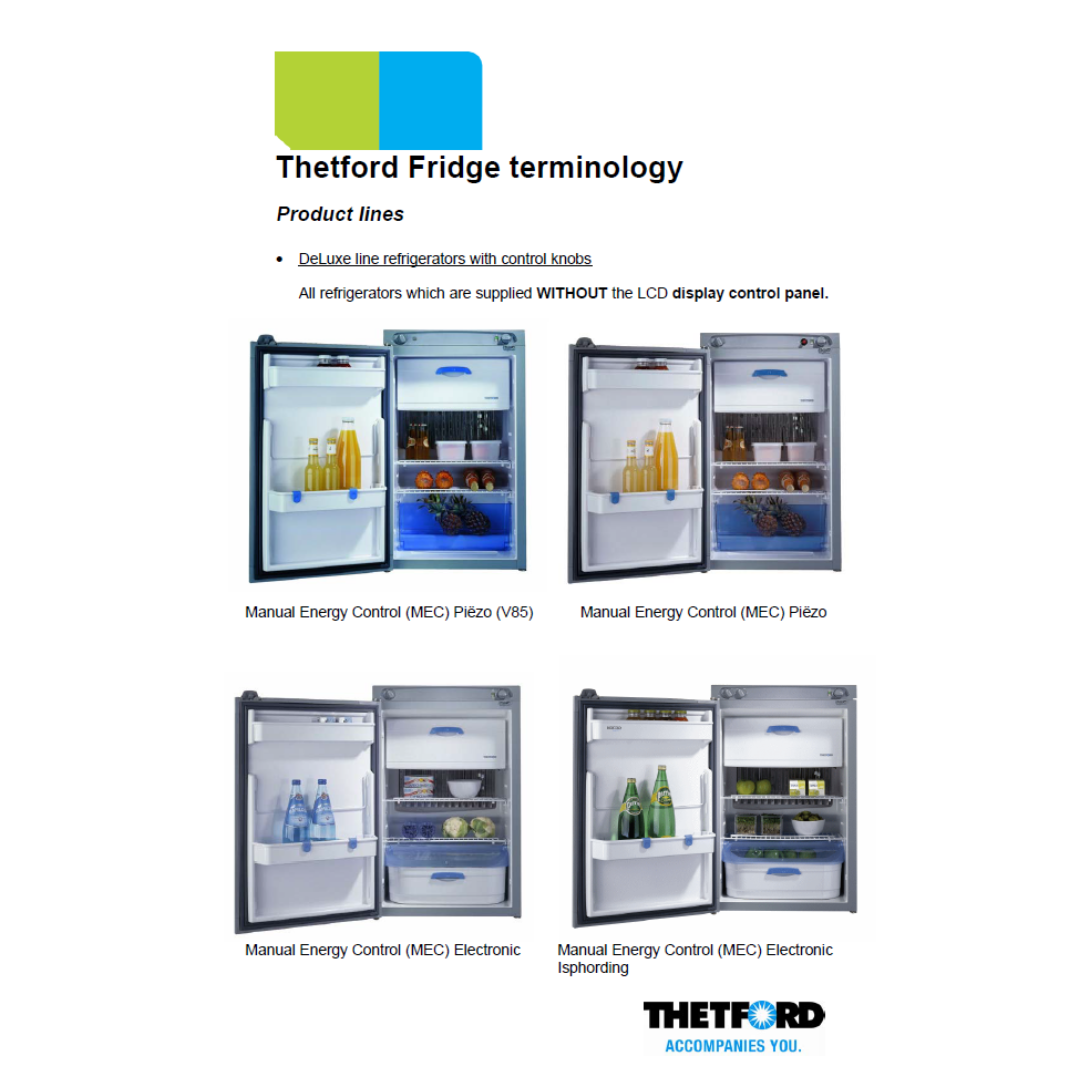

The manual explains Thetford's refrigerator terminology and distinguishes between DeLuxe models with control knobs, DeLuxe LED refrigerators and Premium LCD refrigerators. Premium LCD models use either Electronic Energy Selection (EES) or Smart Energy Selection (SES), with the guide explaining how to distinguish between the two versions.

This is particularly useful for caravan and motorhome owners, technicians or repairers looking for a Thetford fridge troubleshooting manual, error code guide or diagnostic information for an N-Series refrigerator.

What's covered:

• Identification of Thetford DeLuxe, LED and Premium LCD refrigerator types
• Smart Energy Selection (SES) and Electronic Energy Selection (EES)
• Error codes 1–14 with diagnostic flowcharts
• AC and DC heater faults
• AC and DC power supply and fuse checks
• Gas ignition and gas lockout problems
• Gas valve and burner troubleshooting
• D+ signal and polarity checks
• No energy source / AUTO mode faults
• DC supply voltage faults
• Thermistor failure and backup operating mode
• Display board and power board communication faults
• Troubleshooting poor refrigerator performance with no error code
• Performance testing on 12V, 230V and gas
• Power board information for LCD refrigerators
• Refrigerator shelf corrosion information
• Gas connection torque information

The error-code section provides step-by-step diagnostic flowcharts. For example, Error Code 9 relates to gas lockout when the flame fails to ignite after 30 seconds and includes checks for the gas supply, spark, electrode gap, electrode connections, gas valve, burner/injector and gas pressure.

The guide also covers situations where the fridge has poor cooling performance without displaying an error code, with separate diagnostic procedures for operation on 12 volts, 230 volts and gas.

Models referenced in the manual include:

• Thetford N90
• Thetford N97
• Thetford N98
• Thetford N100
• Thetford N104
• Thetford N109
• Thetford N112
• Thetford N115
• Thetford N145
• Thetford N150
• Thetford N175
• Thetford N180

These model numbers appear in the electrical diagnostic specifications for AC and DC heater testing.

Please note that this is primarily a technical troubleshooting and diagnostic guide, rather than a general owner's instruction manual. It is particularly suited to anyone searching for Thetford fridge error codes, Thetford LCD fridge troubleshooting, SES/EES refrigerator faults, or Thetford N-Series fridge diagnostic information.

This listing is for a downloadable PDF manual only and does not include a physical refrigerator or replacement parts.
