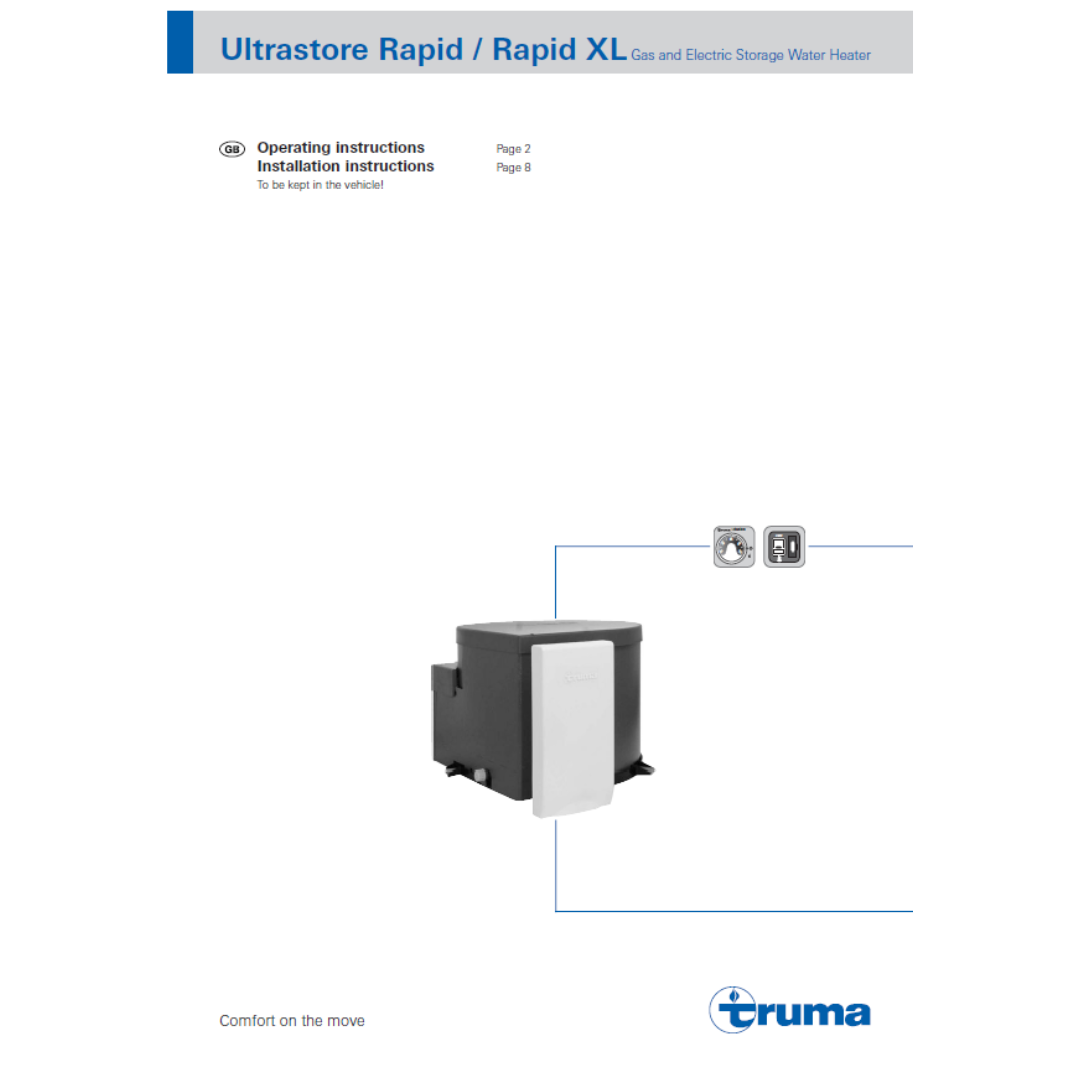

Truma Ultrastore Rapid / Rapid XL Gas & Electric Water Heater Instruction Manual

Download the Truma Ultrastore Rapid / Rapid XL Gas & Electric Water Heater Instruction Manual, covering the operation, maintenance, fault finding and installation of these Truma storage water heaters for caravans and motorhomes. The manual specifically covers the Ultrastore Rapid and Ultrastore Rapid XL gas and electric models.

This is a 16-page PDF manual containing both operating instructions and installation instructions. It is ideal as a replacement manual if you've lost the original handbook, purchased a used caravan or motorhome without its appliance documentation, or need help operating, maintaining or troubleshooting your Truma Ultrastore water heater.

What's covered:

• Important operating information and general safety guidance
• Filling the Truma Ultrastore with water
• Draining the water heater and protection against frost
• Gas operation and water temperature adjustment
• 230V electric operation
• Simultaneous gas and electric operation
• Red failure indicator and resetting the appliance
• Cleaning, maintenance and descaling
• Water heater fuse information
• Technical specifications and dimensions
• Fault finding for gas, electric and water-supply problems
• Manufacturer warranty information
• Installation requirements and choice of location
• Installation of the water heater and external cowl
• Water connections and pipe routing
• Safety/pressure-relief drain valve installation
• Gas connection
• Installation of gas and electric control panels
• 12V and 230V electrical connections
• Installation function checks
• Compatible accessories

The operating instructions explain how to fill and drain the heater and how to use both heating methods. During gas operation, the water temperature can be adjusted continuously from approximately 30°C to 70°C. The manual also covers 230V electric operation at 850W and explains that gas and electric power can be used simultaneously for faster heating.

Model compatibility:

This manual specifically covers two Truma water heater variants:

• Truma Ultrastore Rapid – 10 litre
• Truma Ultrastore Rapid XL – 14 litre

The technical data identifies the Rapid as having a 10-litre water capacity and the Rapid XL as having a 14-litre water capacity. It also provides separate heating times for each model when operated using gas, electricity, or gas and electricity together.

The manual includes a dedicated fault-finding guide covering issues such as the heater failing to operate on gas or electricity, the red failure lamp illuminating, lack of gas or electrical supply, excessive water pressure and hot water flowing back through the cold-water supply.

Installation instructions are also included and state that the appliance is designed for installation in caravans, motorhomes and other vehicles. The installation section covers positioning, water and gas connections, control panels and electrical connections.

This replacement Truma Ultrastore Rapid / Rapid XL user manual is useful for anyone looking for Truma Ultrastore instructions, operating instructions, installation guidance, troubleshooting information or a PDF manual for the 10-litre Rapid or 14-litre Rapid XL caravan and motorhome water heater.

Please note: This is a downloadable manual only. No water heater or other physical equipment is supplied.
