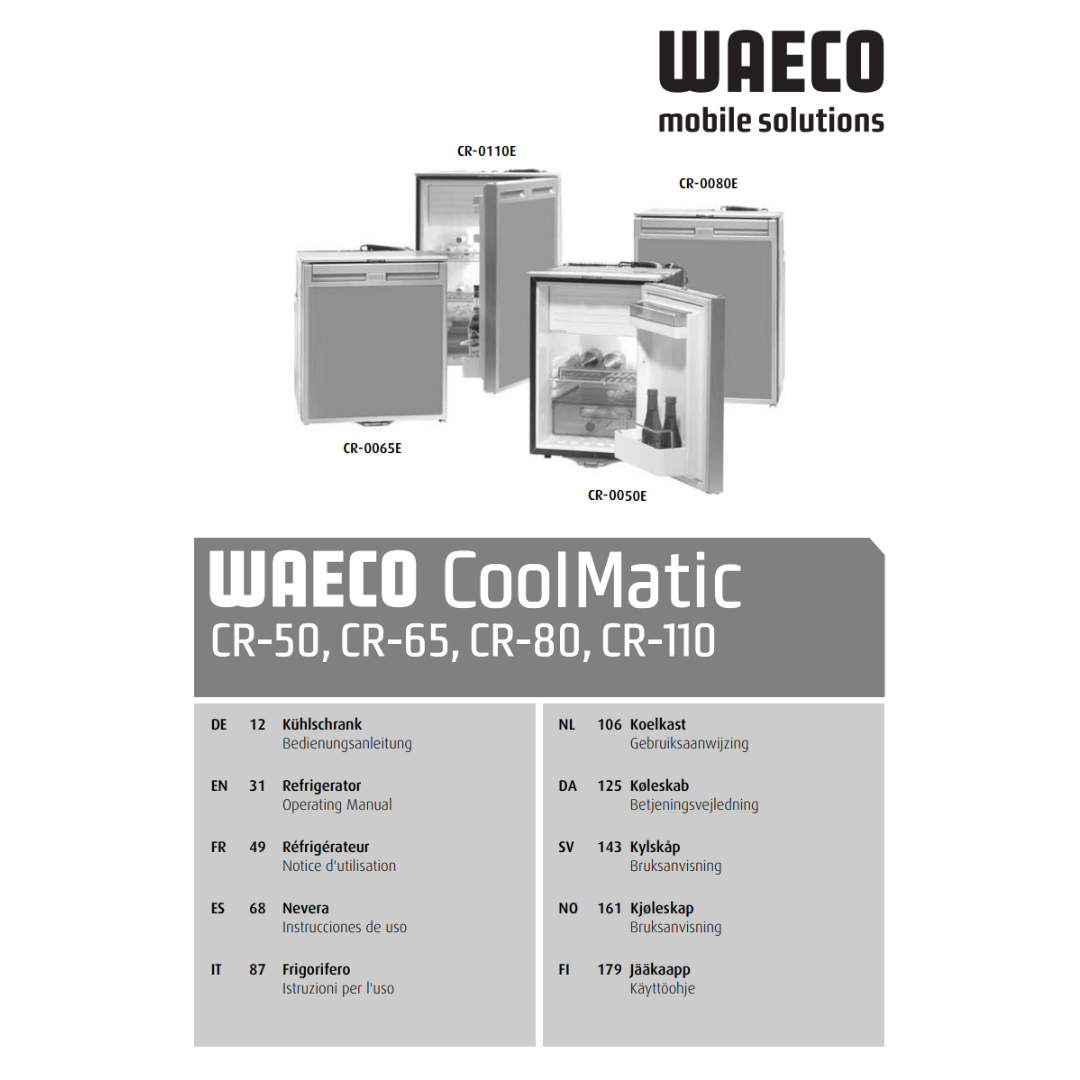

WAECO CoolMatic CR-50, CR-65, CR-80 & CR-110 Refrigerator Operating Manual

Download the WAECO CoolMatic CR-50, CR-65, CR-80 & CR-110 Refrigerator Operating Manual, covering the installation, connection, operation, cleaning, maintenance and troubleshooting of WAECO CoolMatic CR Series refrigerators.

The manual covers four CoolMatic refrigerator models — CR-50, CR-65, CR-80 and CR-110 — with the corresponding item numbers CR-0050E, CR-0065E, CR-0080E and CR-0110E. The document identifies itself as a refrigerator operating manual. coolmatic-cr-manual

This 30-page PDF manual is a useful replacement for caravan, campervan or motorhome owners who have lost the original WAECO CoolMatic handbook, purchased a vehicle without its appliance documentation, or need instructions for installing, operating or troubleshooting their CR Series fridge.

The refrigerators are designed for cooling and freezing food and can operate from 12V or 24V DC, including installations in campervans and caravans. The manual also covers connection to AC power using the appropriate optional rectifier. coolmatic-cr-manual

What's covered:

• Important safety instructions
• Scope of delivery and available accessories
• Intended use of the CoolMatic refrigerator
• Technical description and refrigerator controls
• Freezer compartment, shelves, fruit compartment and door storage
• Temperature controller and indicator LEDs
• Installing and securing the refrigerator
• Ventilation requirements
• Door locking and ventilation positions
• Changing the door hinge
• Connecting the refrigerator to 12V or 24V DC power
• AC connection using an optional rectifier
• Using the refrigerator and setting the temperature
• Energy-saving advice
• Storing and freezing food
• Defrosting the refrigerator and freezer
• Switching off and storing the refrigerator
• Replacing the interior light
• Cleaning and care
• Troubleshooting and fault diagnosis
• Technical data and dimensions

The contents page confirms dedicated sections for installation and connection, refrigerator operation, cleaning and care, troubleshooting and technical data. coolmatic-cr-manual

Model compatibility

This WAECO CoolMatic operating manual covers:

• WAECO CoolMatic CR-50 — item number CR-0050E
• WAECO CoolMatic CR-65 — item number CR-0065E
• WAECO CoolMatic CR-80 — item number CR-0080E
• WAECO CoolMatic CR-110 — item number CR-0110E

The manual contains model-specific illustrations for all four refrigerators, including their internal layouts and controls. coolmatic-cr-manual Technical data is also provided separately for the four models, including capacity, freezer capacity, average power consumption and weight. coolmatic-cr-manual

The installation section explains ventilation and positioning requirements, securing the refrigerator in a recess, electrical connections and the cable requirements for 12V and 24V operation. coolmatic-cr-manual

The troubleshooting section includes guidance for fault LED indications, compressor problems, poor cooling, electrical supply issues and unusual noises, making this manual useful when diagnosing problems with an older WAECO CoolMatic CR refrigerator. coolmatic-cr-manual

This is a digital PDF operating manual, not a physical refrigerator.
